Utilizing a high and low-temperature resistant flame-retardant kit, the ink is even and safe

Reinforced bottom shell structure, excellent flatness, not easily deformed

Wide color gamut, high color reproduction, making the image more vibrant and natural Wide viewing angle, no color distortion from any position

Utilizing industry-standard common unit boards and common data and power interfaces

Iron case, die-cast aluminum case, and simple case are optional Upgradable secondary surface treatment (GOB process)

Mainly used in shopping malls and centers, conference rooms, exhibition halls, stations, broadcast television stations, corporate office areas, control rooms, command centers, and entertainment venues.

		P0.937	P1.25	P1.5625	P1.875	P2.5
Module Parameters	Pixel Pitch	0.937mm	1.25mm	1.5625mm	1.875mm	2.5mm
	Module Size（L*H）	300*168.7mm
	Module resolution（L*H）	320*180	240*135	192*108	160*90	120*67
	Pixel Density	1138992points/㎡	640000points/㎡	409600points/㎡	284444points/㎡	160000points/㎡

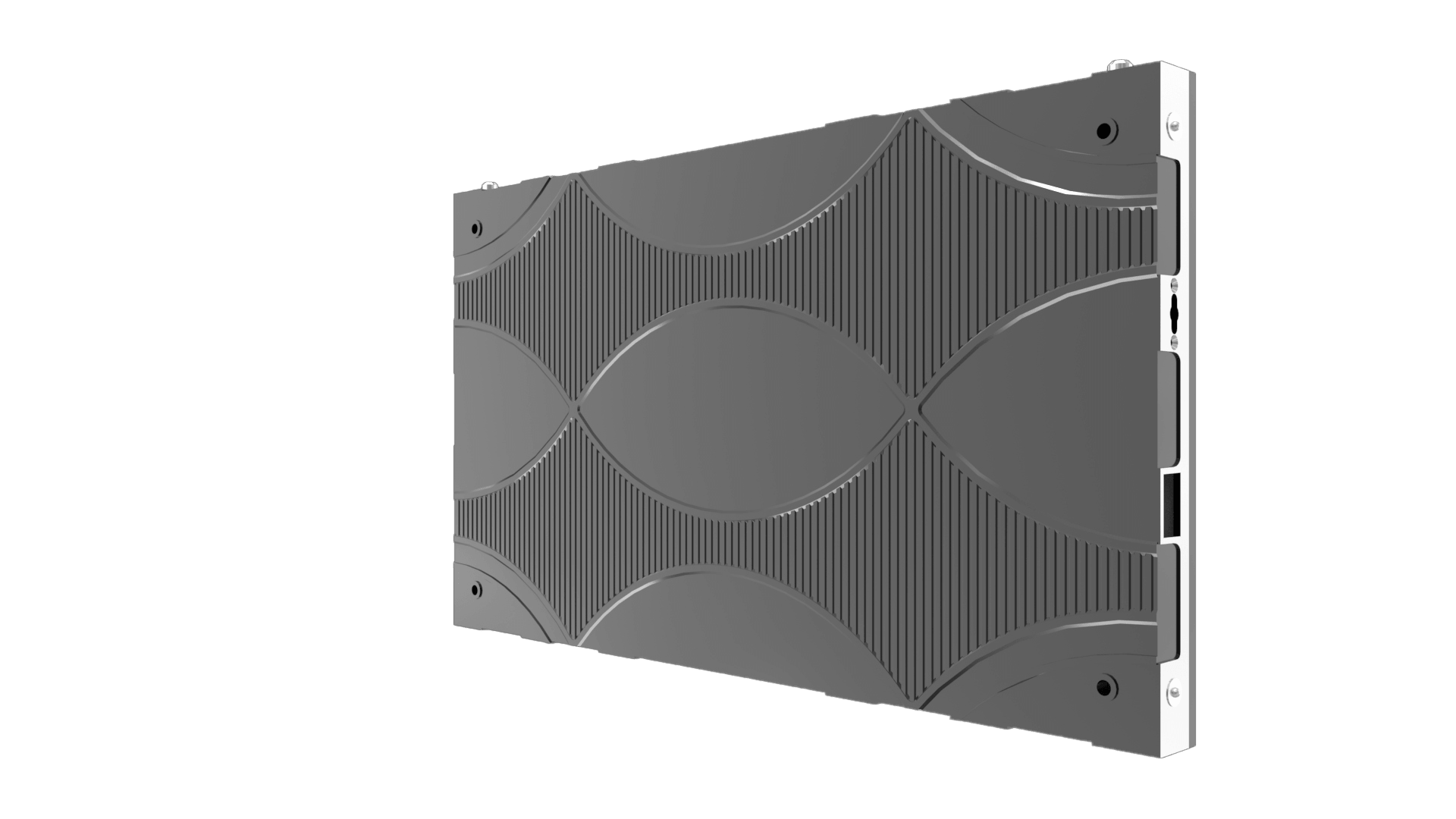

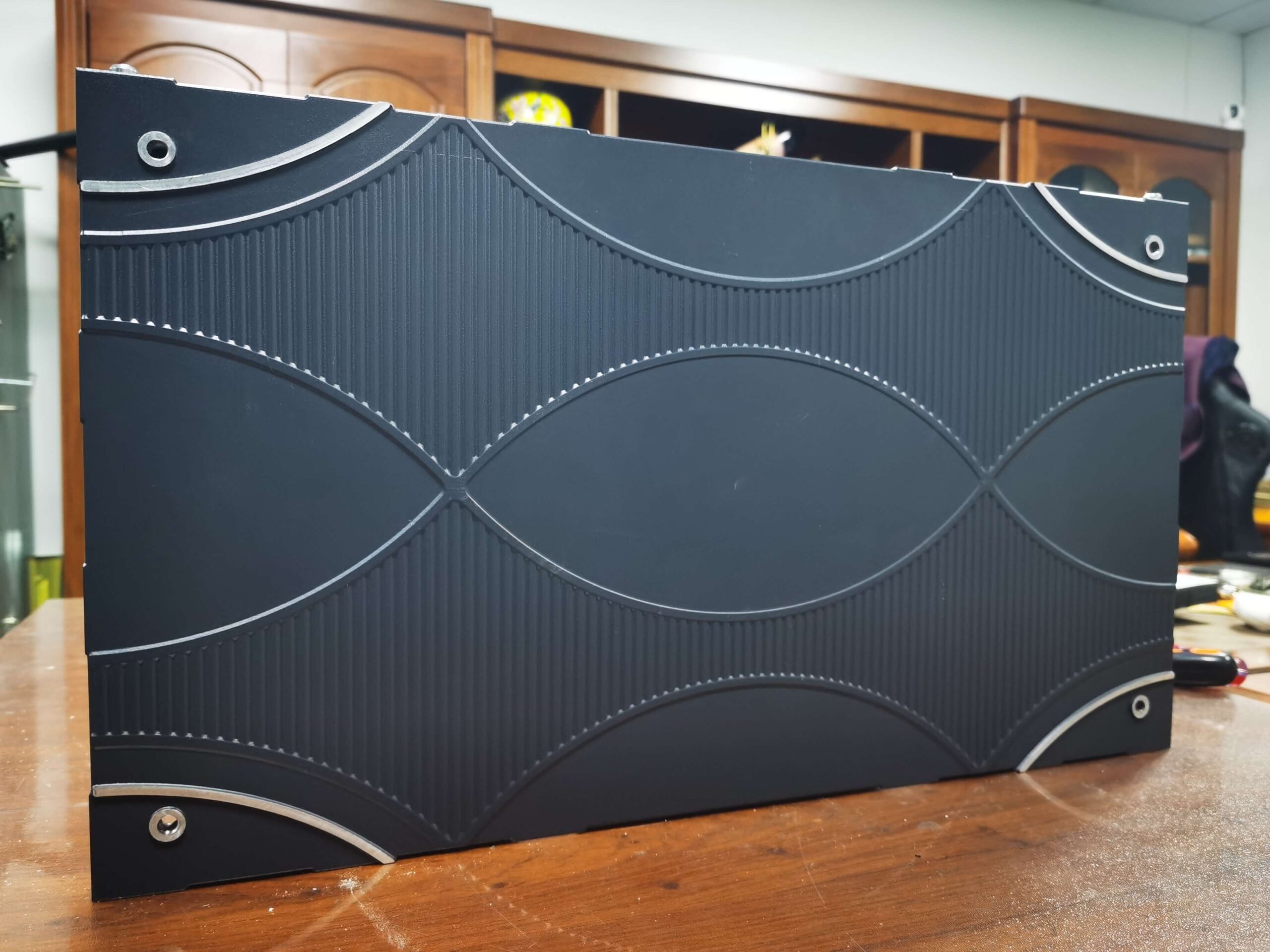

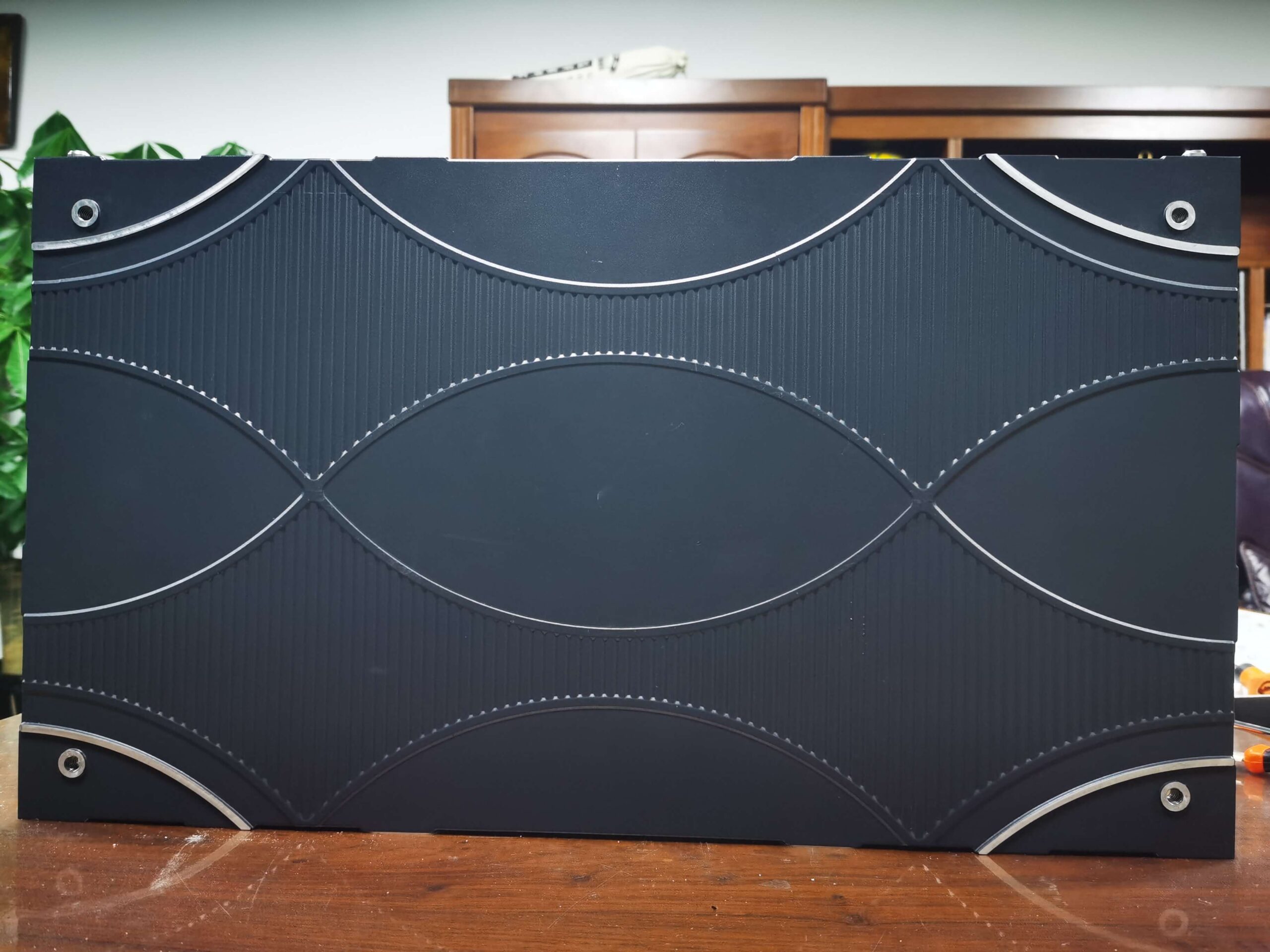

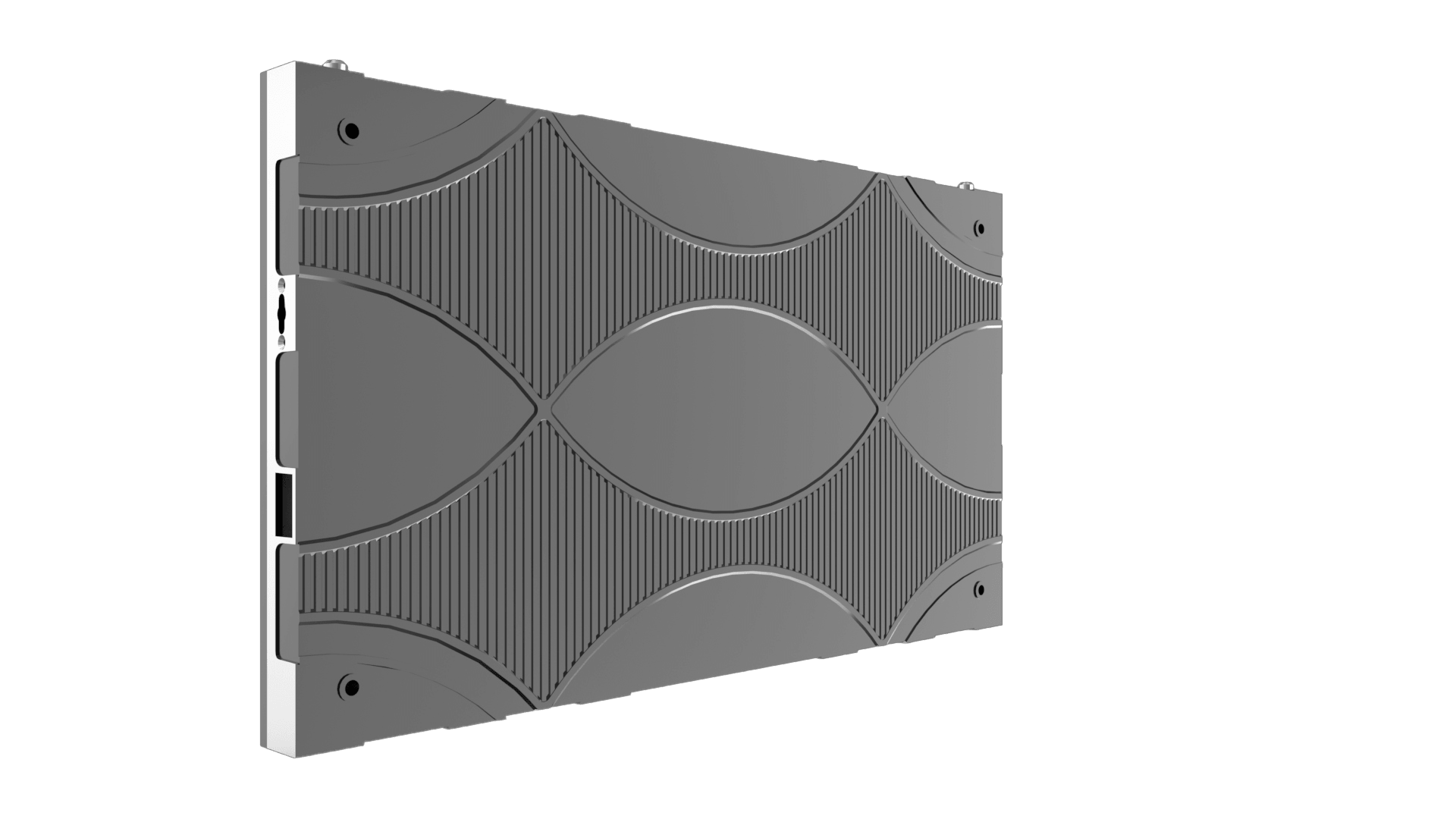

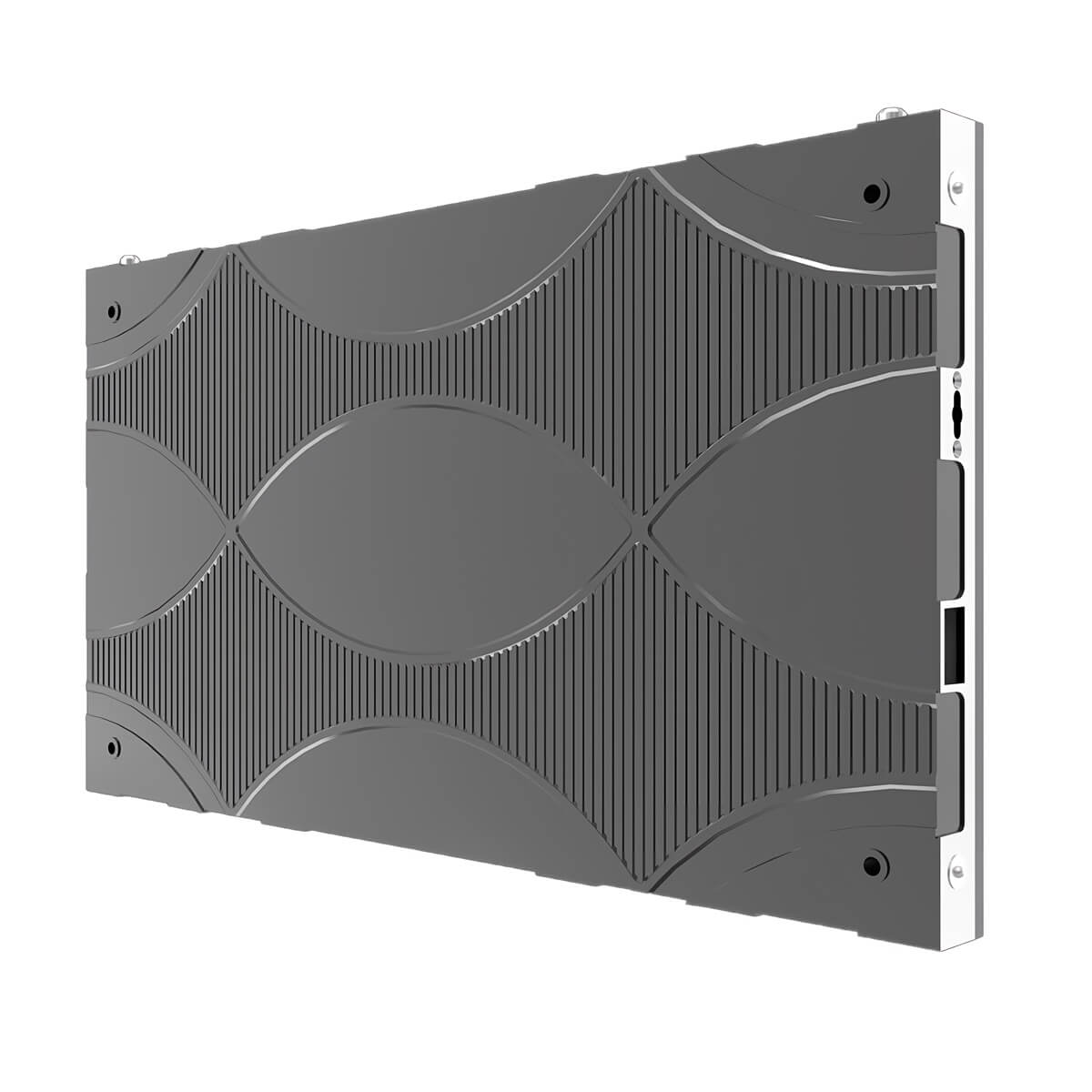

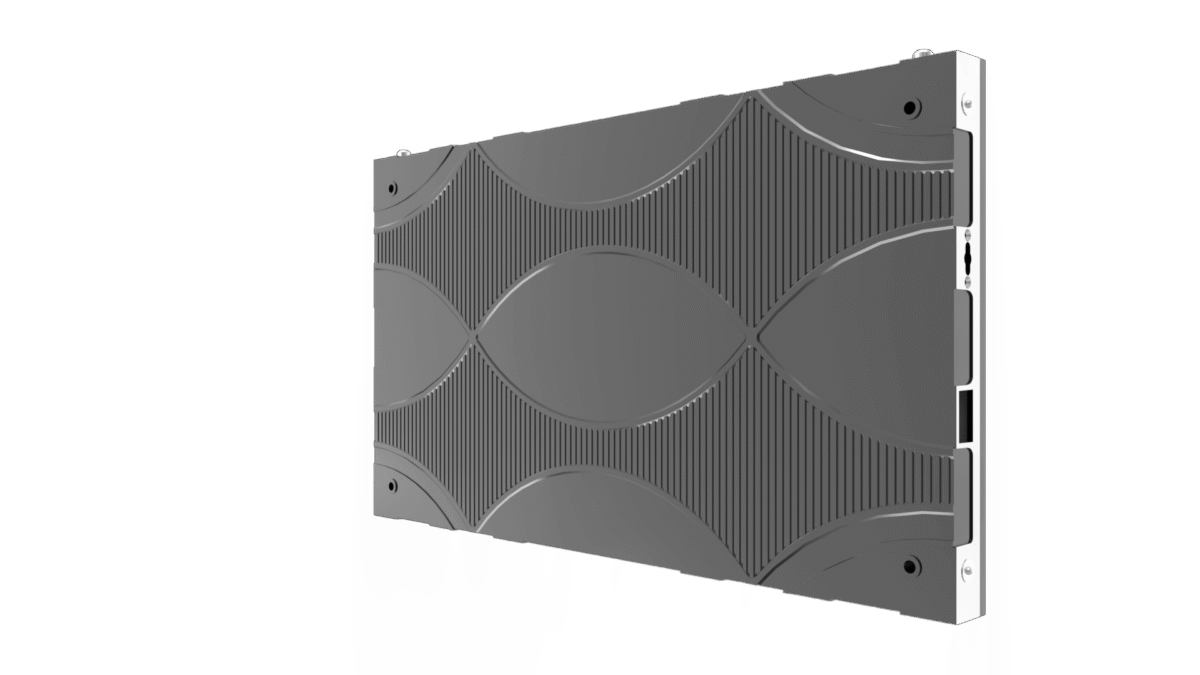

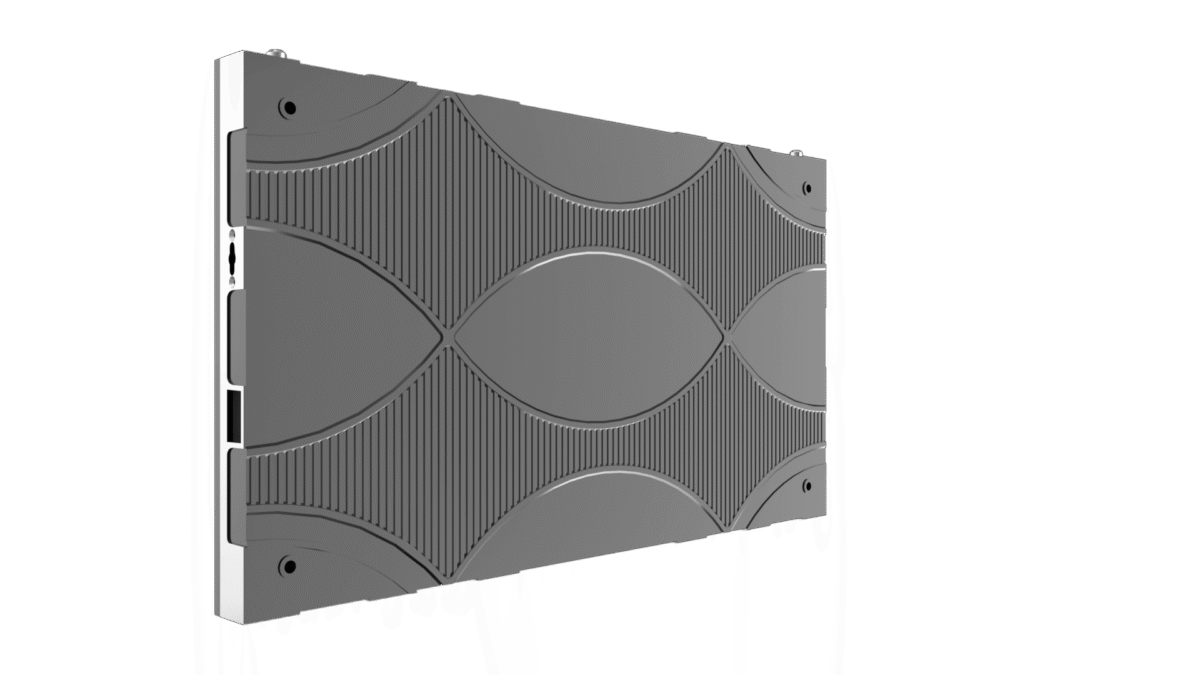

Cabinet Technology	Cabinet Size（L*H）	600*337.5mm
	Cabinet Material	Die-casting aluminum
	Cabinet resolution（L*H）	640*360	480*270	384*216	320*180	240*135
	Brightness	600cd/㎡
	Viewing angle	Horizontal 145°, Vertical 145°
	Gray Scale	14bit
	Color Temperature	3000-10000K
	Refresh Rate	1920HZ/3840HZ
	Contrast	≥5000:1
	Maximum Power Consumption	≤600W/㎡
	Average Power Consumption	200W/㎡
	Discrete Failure Point	≤0.1‰
	Control Mode	Synchronou/Asynchronous
	Input Voltage	AC 220V
	Typical Lifespan	100,000H
	Operating Environment Temperature	－20～60℃
	Operating Environment Humidity	10%～85％
	IP Rating	IP50
	Maintenance Method	Front Maintenance (Customizable For Rear Maintenance)

Competitive Advantages

1. High quality;

2. Competitive price;

3. 24-hours service;

4. Promote delivery;

5.Small order accepted.

	GOB Product	Traditional Product
Waterproof	Waterproof	Not have
Dustproof	Dustproof	Not have
Anti-knock	Good Earthquake Resistance	Poor Earthquake Resistance
Anti-oxidation	Anti-oxidation	Not have
Moistureproof	Good Moisture Resistance	Poor Moisture Resistance
Installation Transportation	Not afraid of bumps or collisions	Prone to bumps or collisions
Eye Protection	Non-glare filters blue light damage effectively	Glaring, Fatiguing Easily
Viewing Angle	No Dead Angle	It’s prone to bulge with mask
Service Life	Not affected by the environment, Normal lifespan	Susceptible to environmental influence, Short lifespan
Clean	Surface cleanable	Difficult to clean
Maintain	Needs to be sent back to the factory for maintenance	Can be repaired on-site
