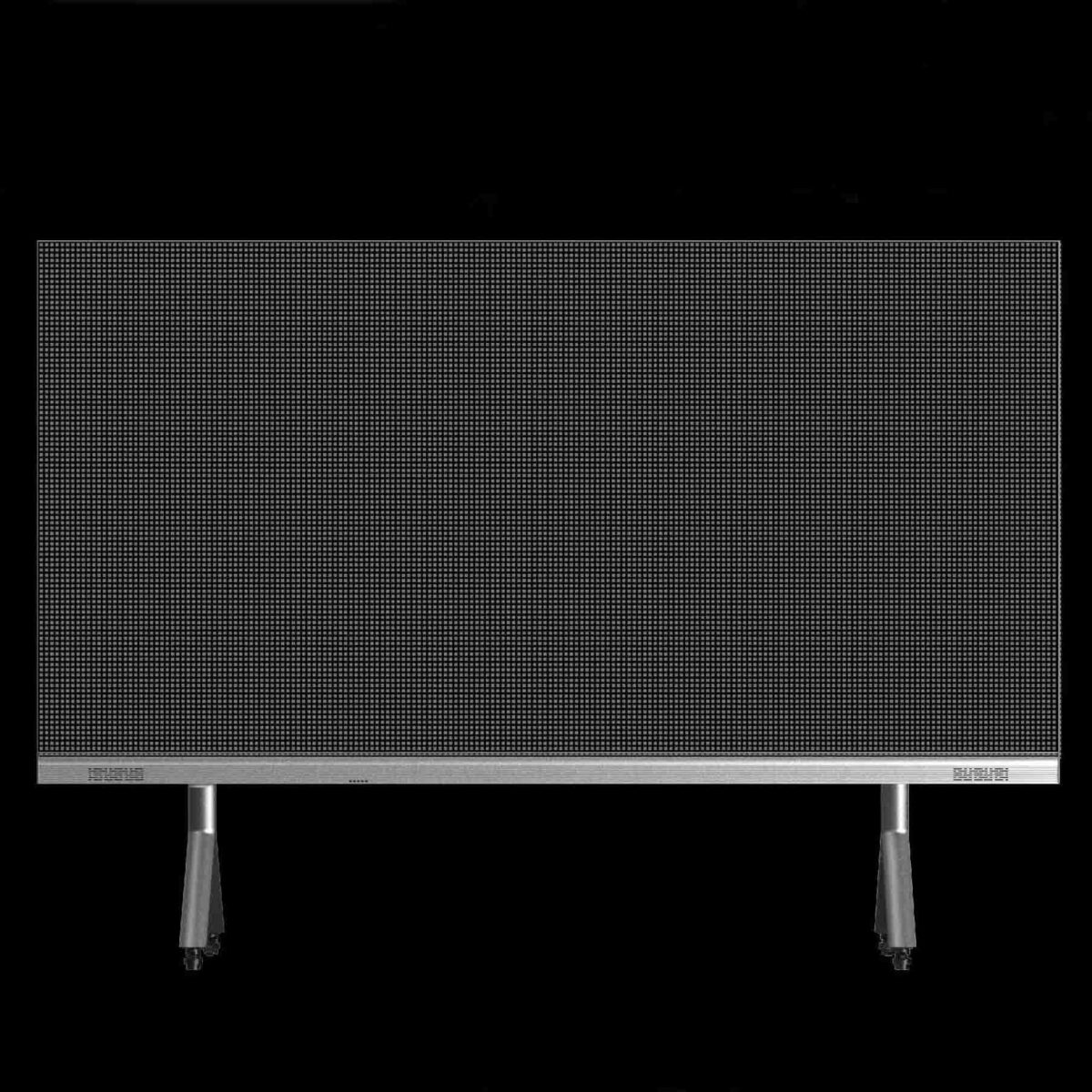

LED All-in-One Conference Display 116″–169″ | Fine Pitch LED Screen
Our 116″–169″ LED All-in-One Conference Display combines a seamless fine-pitch LED screen with an integrated display system, delivering a large, bright and high-resolution visual experience for professional meetings, presentations, video conferences and corporate collaboration.
116″–169″ Large Screen
Large-format display for professional meeting environments
Fine Pixel Pitch LED
High-definition images with seamless viewing experience
All-in-One Design
Integrated LED display system for easy deployment
Designed for professional conference environments, the LED All-in-One Conference Display provides a large, seamless and high-brightness visual platform for presentations, video conferencing, remote meetings and collaborative work.
Unlike traditional LCD displays, the LED display is built from modular LED panels, allowing large screen sizes without visible LCD bezels or traditional panel gaps.
01. Seamless Large Screen
The LED modules are directly assembled into a large display surface, creating a seamless visual experience without traditional LCD bezel lines.
02. Fine Pixel Pitch
Fine-pitch LED technology provides high-definition images and clear text, making the display suitable for presentations, spreadsheets, videos and detailed content.
03. 116″–169″ Screen Sizes
Multiple screen sizes are available to meet the requirements of different meeting rooms and conference spaces.
| Screen Size | Recommended Application |
|---|---|
| 116″ | Small & medium meeting rooms |
| 135″ | Conference rooms |
| 150″ | Large meeting rooms |
| 169″ | Boardrooms & conference halls |
04. High Brightness & Wide Viewing Angle
With high brightness and a wide viewing angle, the LED display maintains clear and vivid images from different positions within the meeting room.
Brightness: ≥600 nits
05. Modular LED Design
The display consists of modular LED panels, making transportation, installation and maintenance more flexible. Individual modules can also be replaced when required.
06. Integrated All-in-One Solution
The system integrates the LED display, control system and necessary components into a streamlined conference display solution, reducing installation complexity and saving valuable meeting room space.
Applications
Corporate Meeting Rooms
- Daily meetings
- Presentations
- Management meetings
- Video conferences
- Business negotiations
Boardrooms
Training Rooms
Large-format LED displays provide clear visibility for training materials, presentations, videos and educational content.
Conference Halls
- Corporate events
- Product launches
- Seminars
- Large meetings
- Hybrid conferences
Control & Collaboration Rooms
Multiple content sources can be connected to display presentations, video conferencing, documents and other digital content.
LED Conference Display vs. LCD Display
| Feature | LED Conference Display | LCD Display |
|---|---|---|
| Screen Size | 116″–169″+ | Usually limited by panel size |
| Seamless Surface | ✓ | Visible bezel |
| Large Format | Excellent | Limited |
| Modular Design | ✓ | Limited |
| Brightness | High | Medium |
| Viewing Experience | Seamless | Bezel lines may be visible |
| Maintenance | Modular replacement | Panel replacement |
| Custom Size | Flexible | Limited |
For large conference rooms, LED technology provides a more flexible solution than traditional LCD displays. The modular structure allows the screen size to be customized according to the room and viewing distance, while the seamless surface creates a more immersive presentation experience.
Flexible Installation Options
Wall Mounted

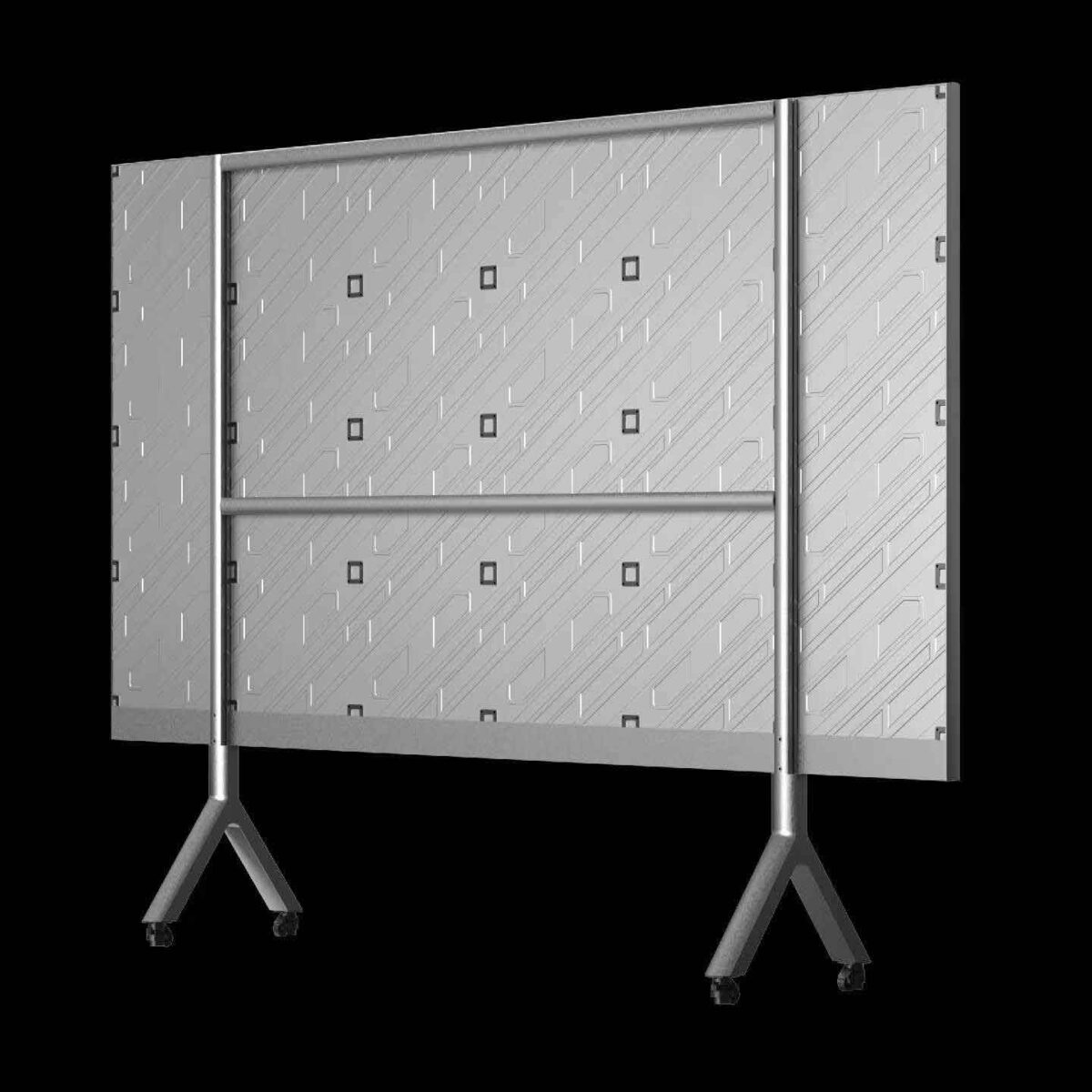

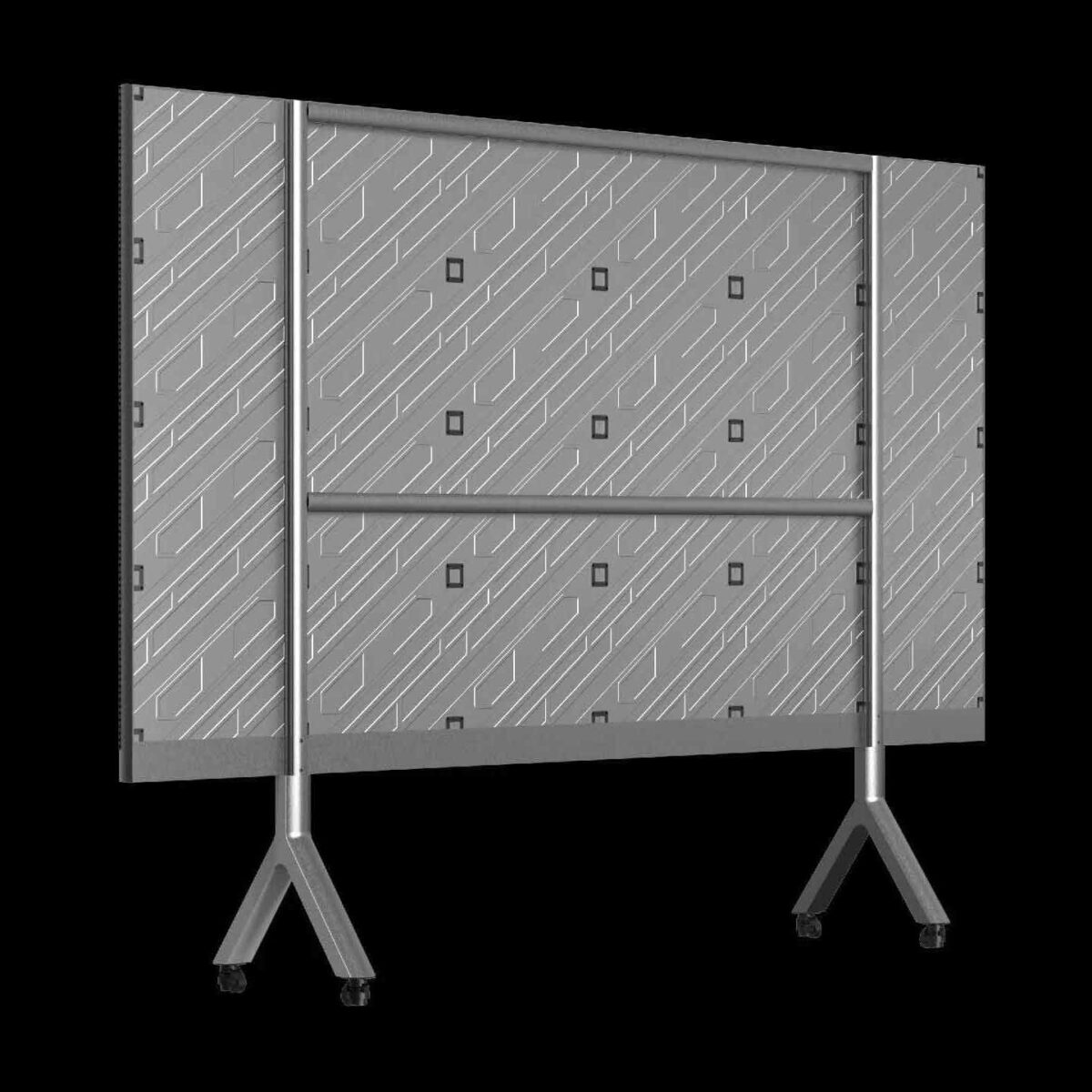

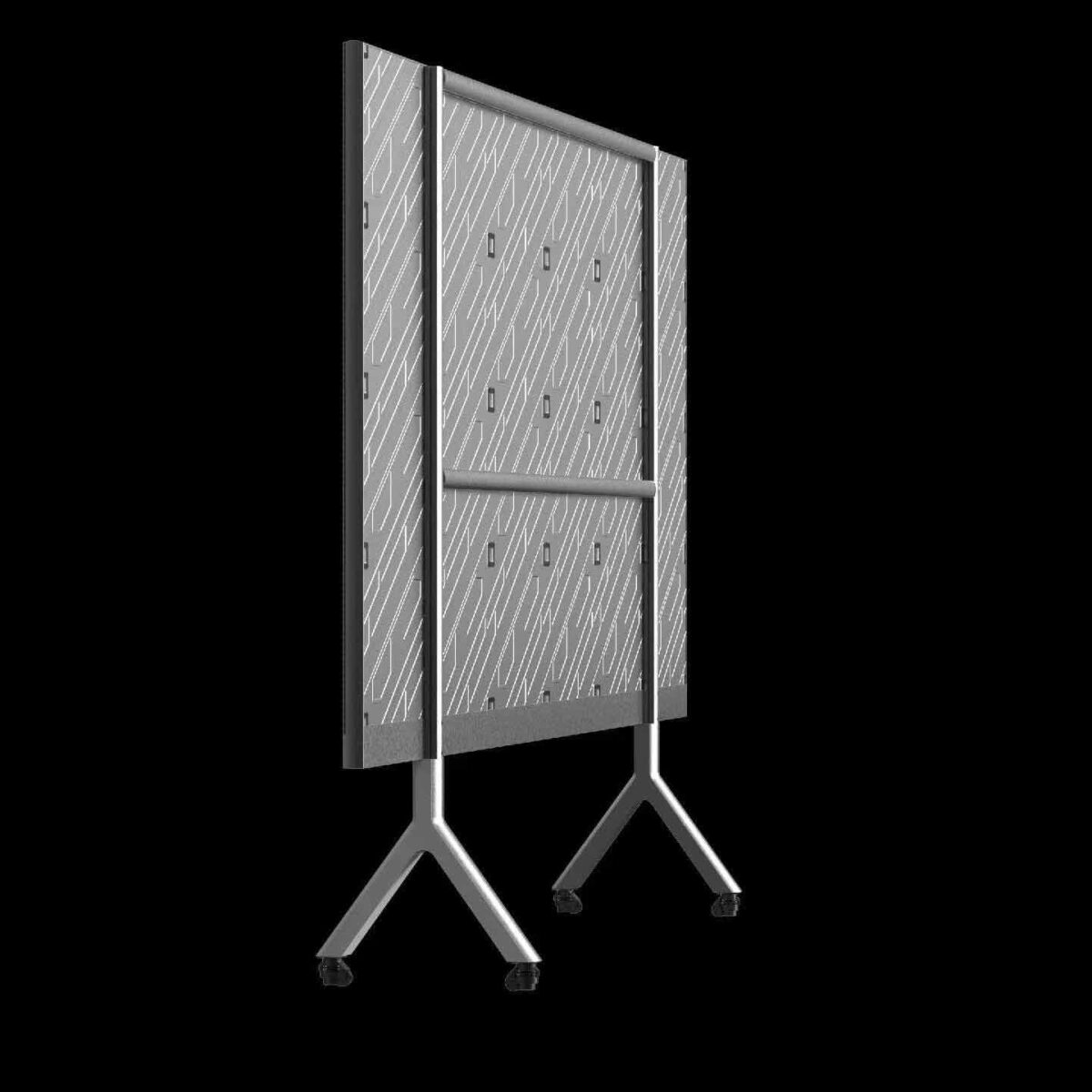

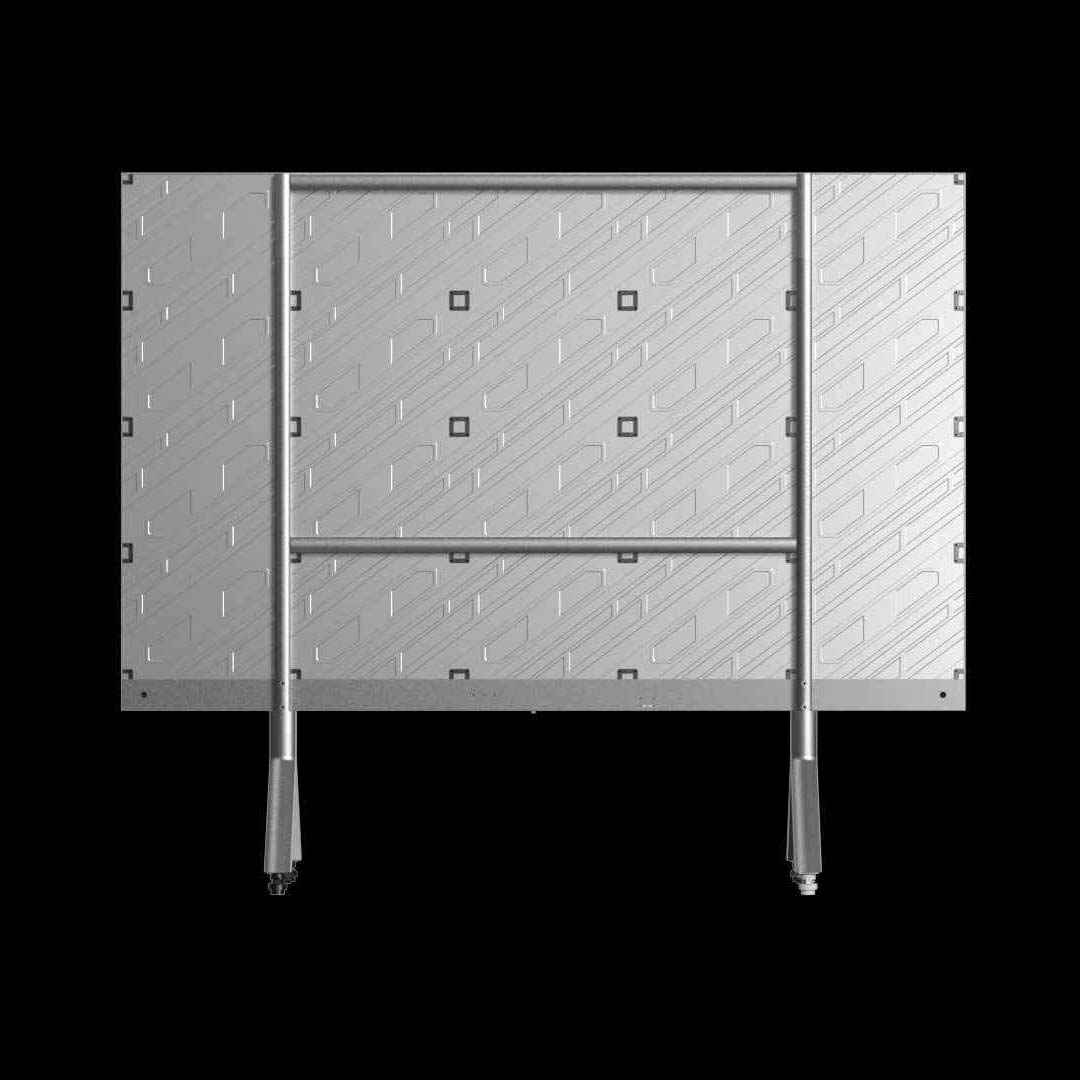

Floor Standing
Integrated Conference Solution
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | LED All-in-One Conference Display |
| Screen Size | 116″–169″ |
| LED Type | SMD LED |
| Pixel Pitch | P1.25 / P1.5 / P1.8 / P2.0 |
| Resolution | Customized according to screen size |
| Brightness | ≥600 nits* |
| Refresh Rate | ≥3840 Hz* |
| Viewing Angle | H: 140° / V: 140° |
| Installation | Wall-mounted / Floor-standing |
| Control System | NovaStar / Colorlight |
| Input | HDMI / DP / USB / Type-C |
| Operating System | Optional |
| Maintenance | Front Maintenance |
| Application | Meeting Room / Boardroom / Conference Hall |
| Working Temperature | -10°C to +40°C |
Optional / configuration dependent.
The optimal screen size depends on the room dimensions, viewing distance, pixel pitch and content requirements. Our team can recommend the appropriate LED configuration based on your project.
Easy Installation & Front Maintenance
The modular LED structure allows convenient installation and maintenance. Front access makes it easier for technicians to replace LED modules and maintain internal components without removing the entire display.
FAQ
What is an LED All-in-One Conference Display?
An LED All-in-One Conference Display is a large-format LED screen designed for meeting rooms, presentations, video conferences and collaborative applications. It combines a modular LED display with an integrated control system.
What screen sizes are available?
Our LED conference displays are available from 116 inches to 169 inches, with customized configurations available for different meeting room requirements.
What pixel pitch should I choose?
The appropriate pixel pitch depends mainly on the viewing distance. For indoor conference rooms, fine pixel pitches such as P1.25, P1.5, P1.8 and P2.0 are commonly considered.
Can the LED screen be used for video conferencing?
Yes. The display can be integrated with cameras, microphones, speakers, OPS computers and other video conferencing equipment according to the project requirements.
Is the LED display difficult to maintain?
No. The modular design allows individual LED modules or components to be serviced or replaced when necessary. Front maintenance is also available for selected configurations.
Can you customize the LED display size?
Yes. LED displays are modular, so the screen configuration can be adjusted according to the required screen size, pixel pitch and installation environment.
Looking for a 116″–169″ LED Conference Display?
Tell us your meeting room size, viewing distance and preferred screen size. Our team can recommend the appropriate pixel pitch, screen configuration and installation solution for your project.
Send us your project requirements
Screen Size:
Pixel Pitch:
Quantity:
Installation: Wall Mounted / Floor Standing
Country:
Project Application:
