Utilizing a high and low-temperature resistant flame-retardant kit, the ink is even and safe

Reinforced bottom shell structure, excellent flatness, not easily deformed

Wide color gamut, high color reproduction, making the image more vibrant and natural Wide viewing angle, no color distortion from any position

Utilizing industry-standard common unit boards and common data and power interfaces

Iron case, die-cast aluminum case, and simple case are optional Upgradable secondary surface treatment (GOB process)

Mainly used in shopping malls and centers, conference rooms, exhibition halls, stations, broadcast television stations, corporate office areas, control rooms, command centers, and entertainment venues.

Module Parameters		P1.25	P1.53	P1.86	P2	P2.5	P3.076	P4
	Pixel Pitch	1.25mm	1.538mm	1.86mm	2mm	2.5mm	3.076mm	4mm
	Module Size（L*H）	320*160mm
	Module resolution（L*H）	256*128	208*104	172*86	160*80	128*64	104*52	80*40
	Pixel Density	640000 points/㎡	422500 points/㎡	288906 points/㎡	250000 points/㎡	160000 points/㎡	105625 points/㎡	62500 points/㎡

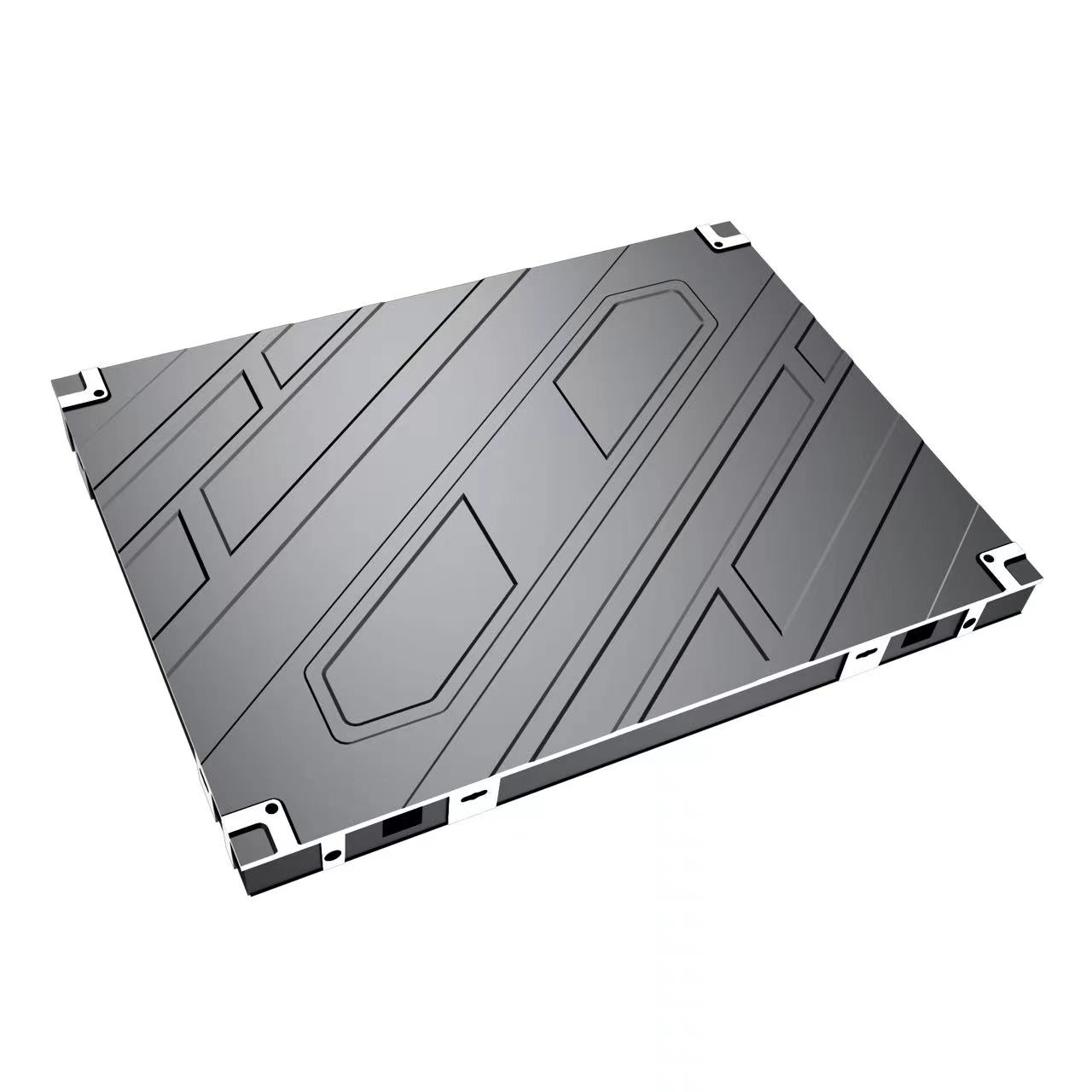

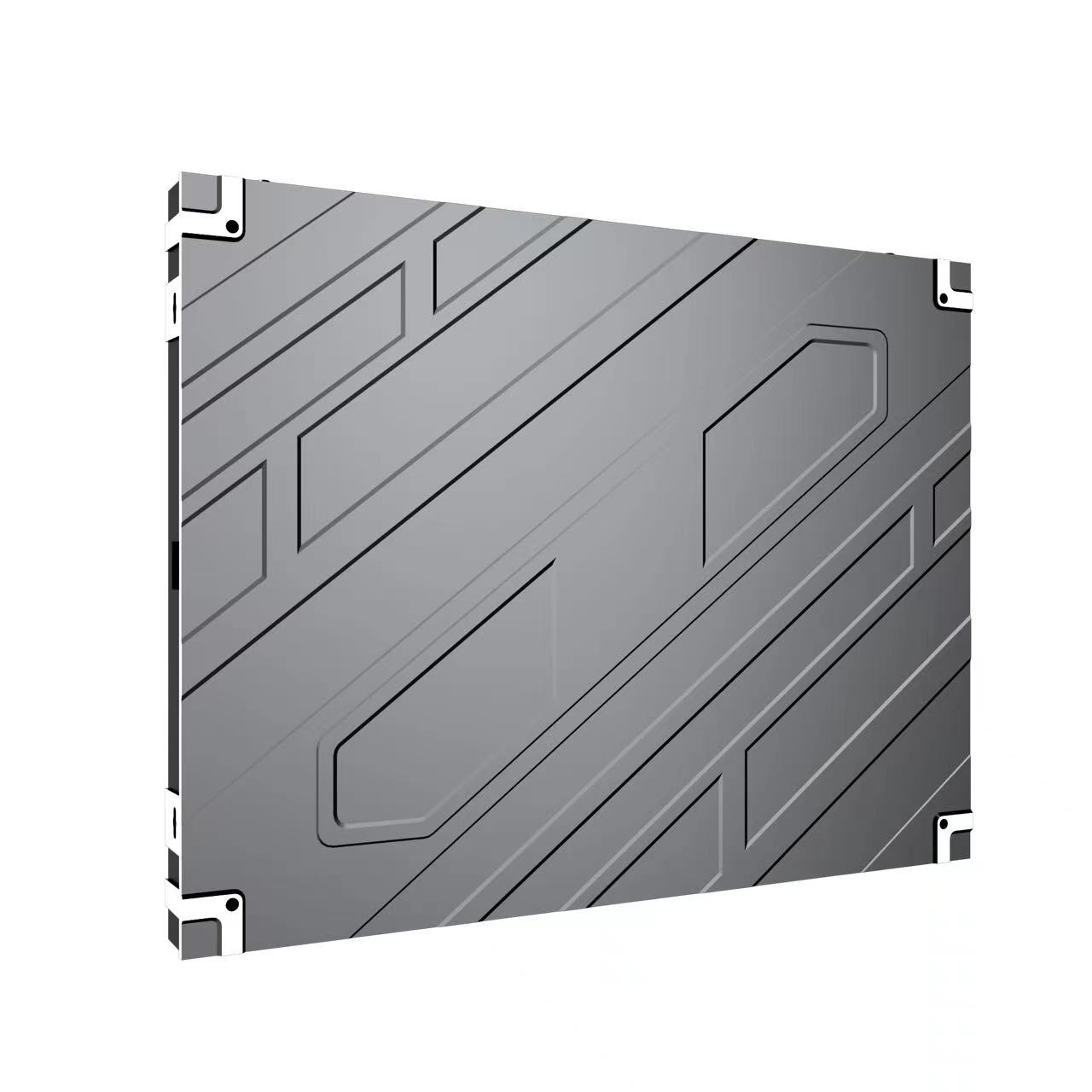

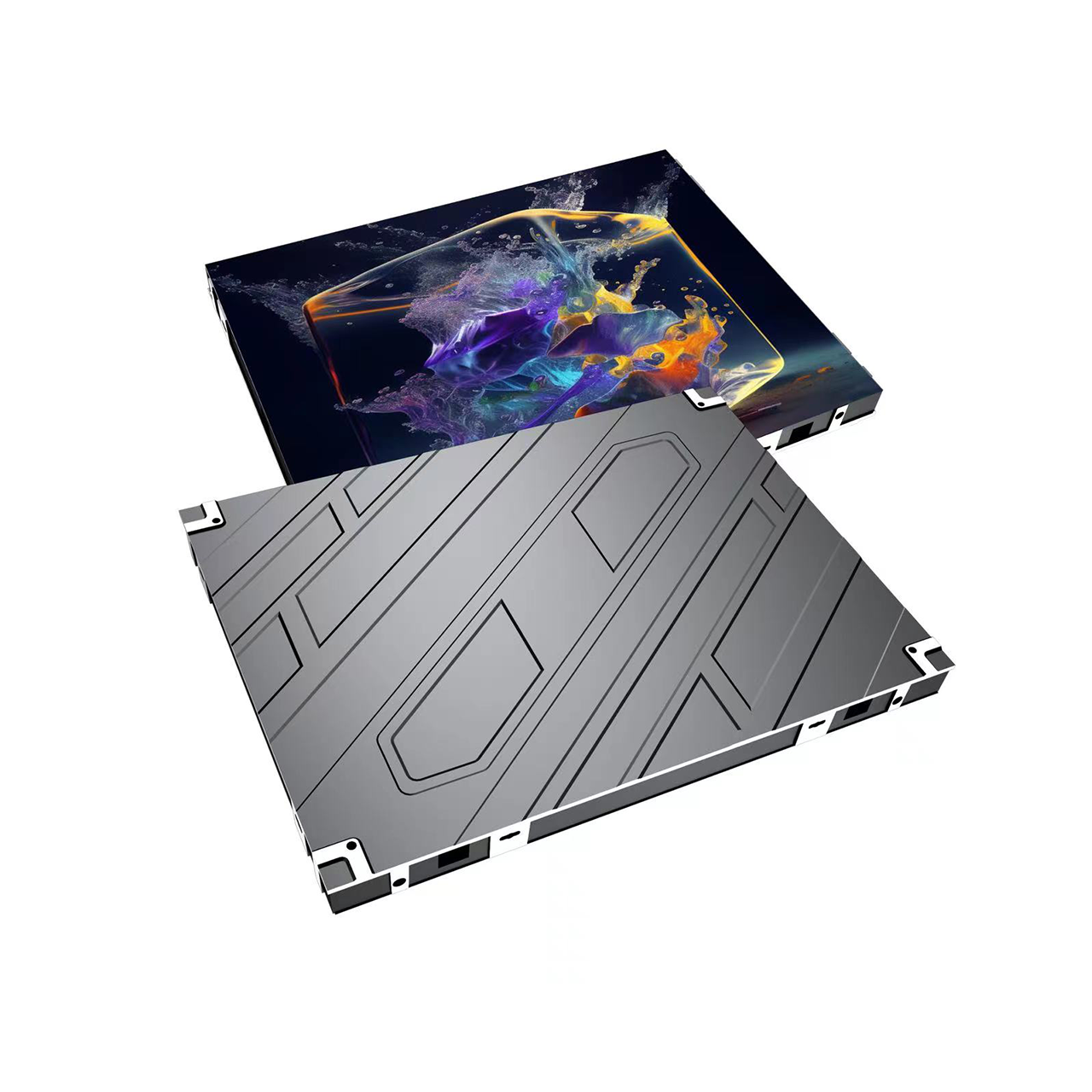

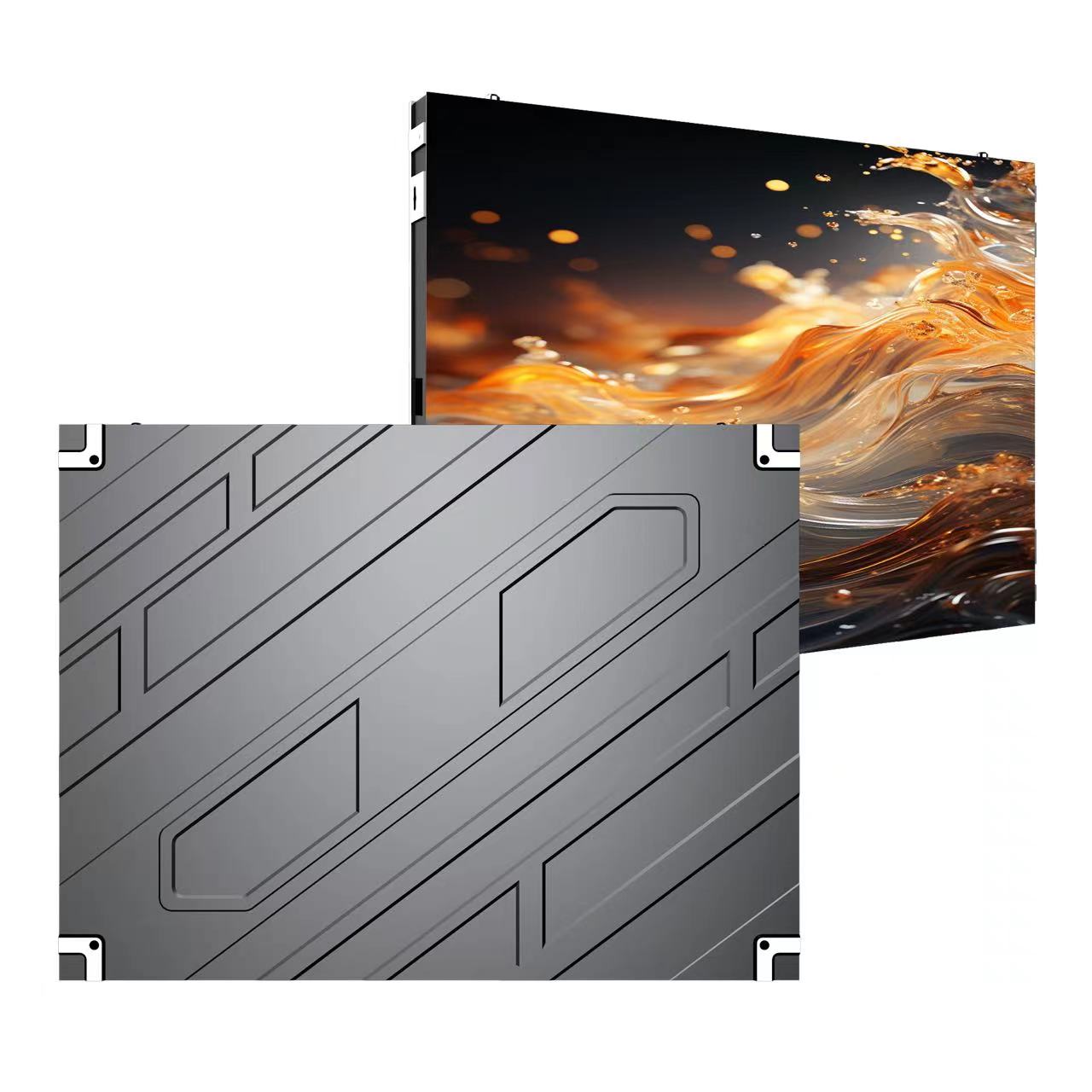

Cabinet Technology	Cabinet Size（L*H）	640*480mm
	Cabinet Material	Die-casting aluminum
	Cabinet resolution（L*H）	512*384	416*312	344*258	320*240	256*192	208*156	160*120
	Brightness	600cd/㎡
	Viewing angle	Horizontal 145°, Vertical 145°
	Gray Scale	14bit
	Color Temperature	3000-10000K
	Refresh Rate	1920HZ/3840HZ
	Contrast	≥5000:1
	Maximum Power Consumption	≤600W/㎡
	Average Power Consumption	200W/㎡
	Discrete Failure Point	≤0.1‰
	Control Mode	Synchronou/Asynchronous
	Input Voltage	AC 220V
	Typical Lifespan	100,000H
	Operating Environment Temperature	－20～60℃
	Operating Environment Humidity	10%～85％
	IP Rating	IP50
	Maintenance Method	Front Maintenance (Customizable For Rear Maintenance)

Competitive Advantages

1. High quality;

2. Competitive price;

3. 24-hours service;

4. Promote delivery;

5.Small order accepted.

	GOB Product	Traditional Product
Waterproof	Waterproof	Not have
Dustproof	Dustproof	Not have
Anti-knock	Good Earthquake Resistance	Poor Earthquake Resistance
Anti-oxidation	Anti-oxidation	Not have
Moistureproof	Good Moisture Resistance	Poor Moisture Resistance
Installation Transportation	Not afraid of bumps or collisions	Prone to bumps or collisions
Eye Protection	Non-glare filters blue light damage effectively	Glaring, Fatiguing Easily
Viewing Angle	No Dead Angle	It’s prone to bulge with mask
Service Life	Not affected by the environment, Normal lifespan	Susceptible to environmental influence, Short lifespan
Clean	Surface cleanable	Difficult to clean
Maintain	Needs to be sent back to the factory for maintenance	Can be repaired on-site
