Using high and low-temperature resistant flame-retardant kit, the ink is uniform and safe；

* Reinforced ribbed bottom shell structure, excellent flatness, not easily deformed；

* Wide color gamut, high color reproduction, resulting in a more vibrant and natural image；

* Wide viewing angle, no color distortion from any position；

* Using industry-standard common unit boards and common data, power interfaces；

* Die-cast aluminum case；

* IP65-rated waterproof and dustproof；

Mainly used for outdoor applications, like highway or senic spots information display, building advertising, outdoor stages etc.

Module Parameters		P1.667	P1.875	P2	P2.5	P3
	Pixel Pitch	1.667mm	1.875mm	2mm	2.5mm	3mm
	Module Size （L*H）	240*240mm
	Module resolution（L*H）	144*144	128*128	120*120	96*96	80*80
	Pixel Density	359856dots/m²	284444 dots/㎡	250000 dots/㎡	160000 dots/㎡	111111 dots/㎡
Cabinet Technology	Cabinet Size（L*H）	480*480mm
	Cabinet Material	Sheet metal or Die-casting aluminum
	Cabinet Resolution（L*H）	Base on cabinet
	Brightness	5000cd/㎡
	Viewing angle	Horizontal 145°, Vertical 145°
	Gray Scale	14bit
	Color Temperature	3000-10000K
	Refresh Rate	1920HZ/3840HZ
	Contrast	≥5000:1
	Maximum Power Consumption	900W/㎡
	Average Power Consumption	300W/㎡
	Discrete Failure Point	≤0.1‰
	Control Mode	Synchronou/Asynchronous
	Input Voltage	AC 220V
	Typical Lifespan	100,000H
	Operating Environment Temperature	－20～60℃
	Operating Environment Humidity	10%～90％
	IP Rating	IP65（Front）
	Maintenance Method	Rear Maintenance (Customizable For Front Maintenance)

Competitive Advantages

1. High quality;

2. Competitive price;

3. 24-hours service;

4. Promote delivery;

5.Small order accepted.

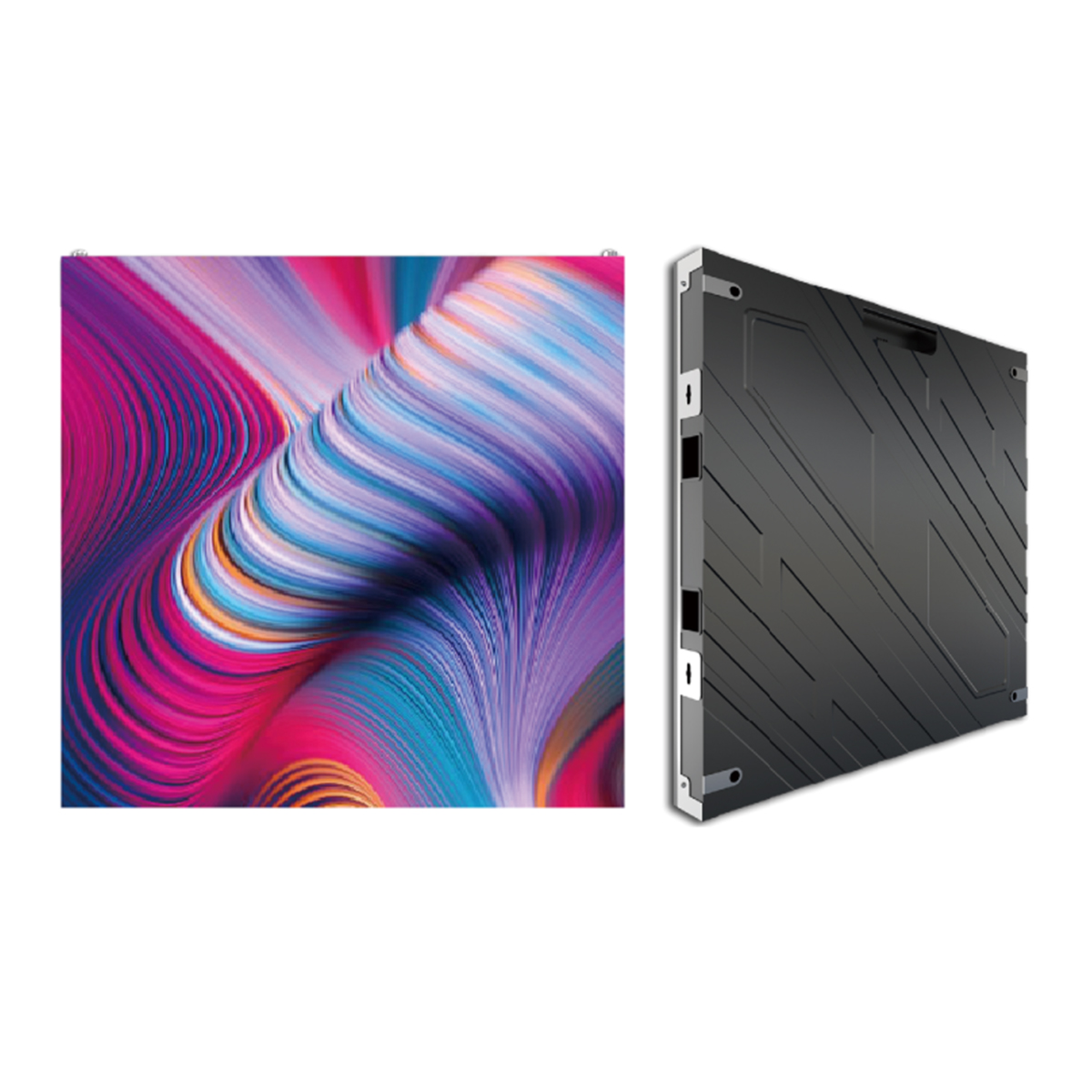

480×480mm series
