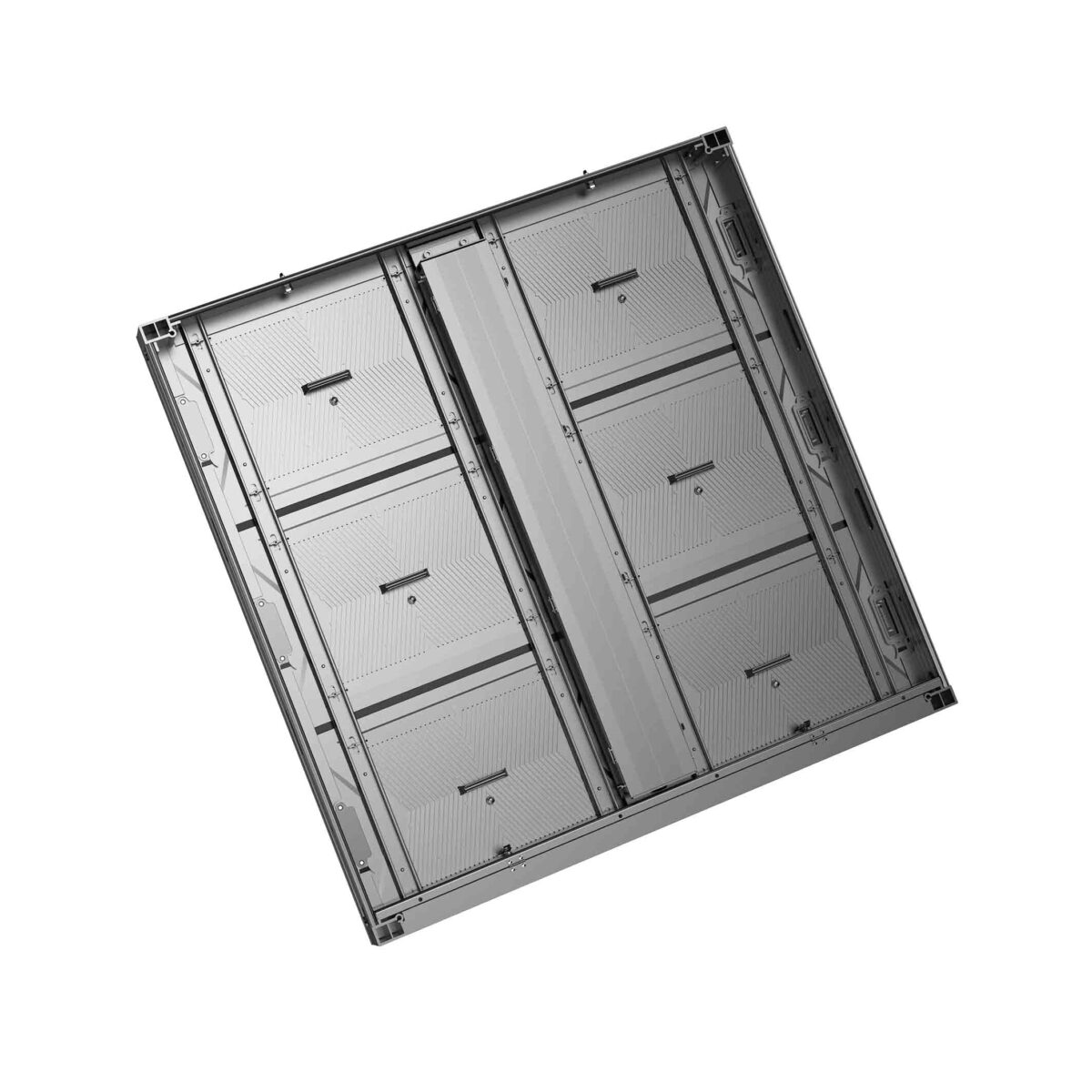

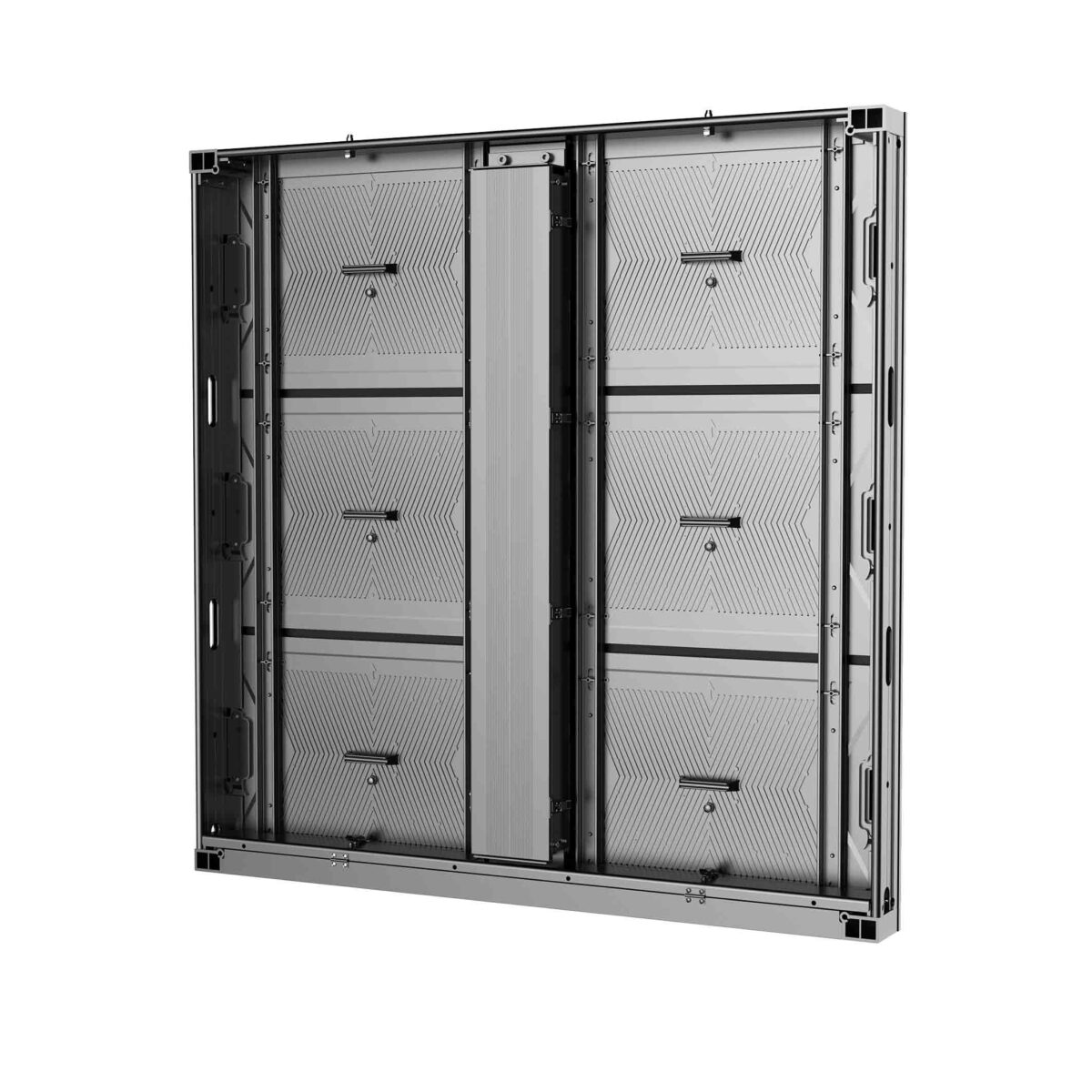

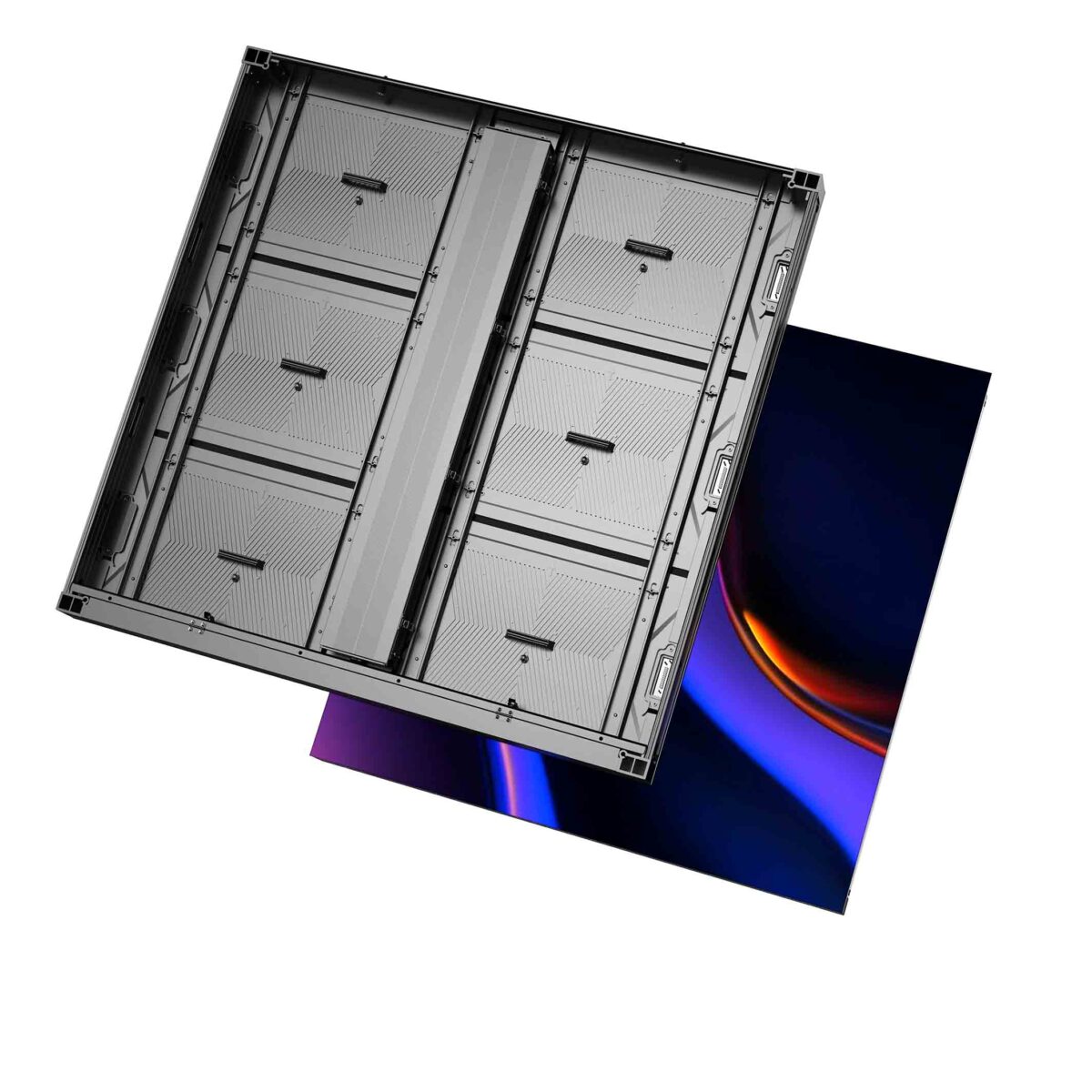

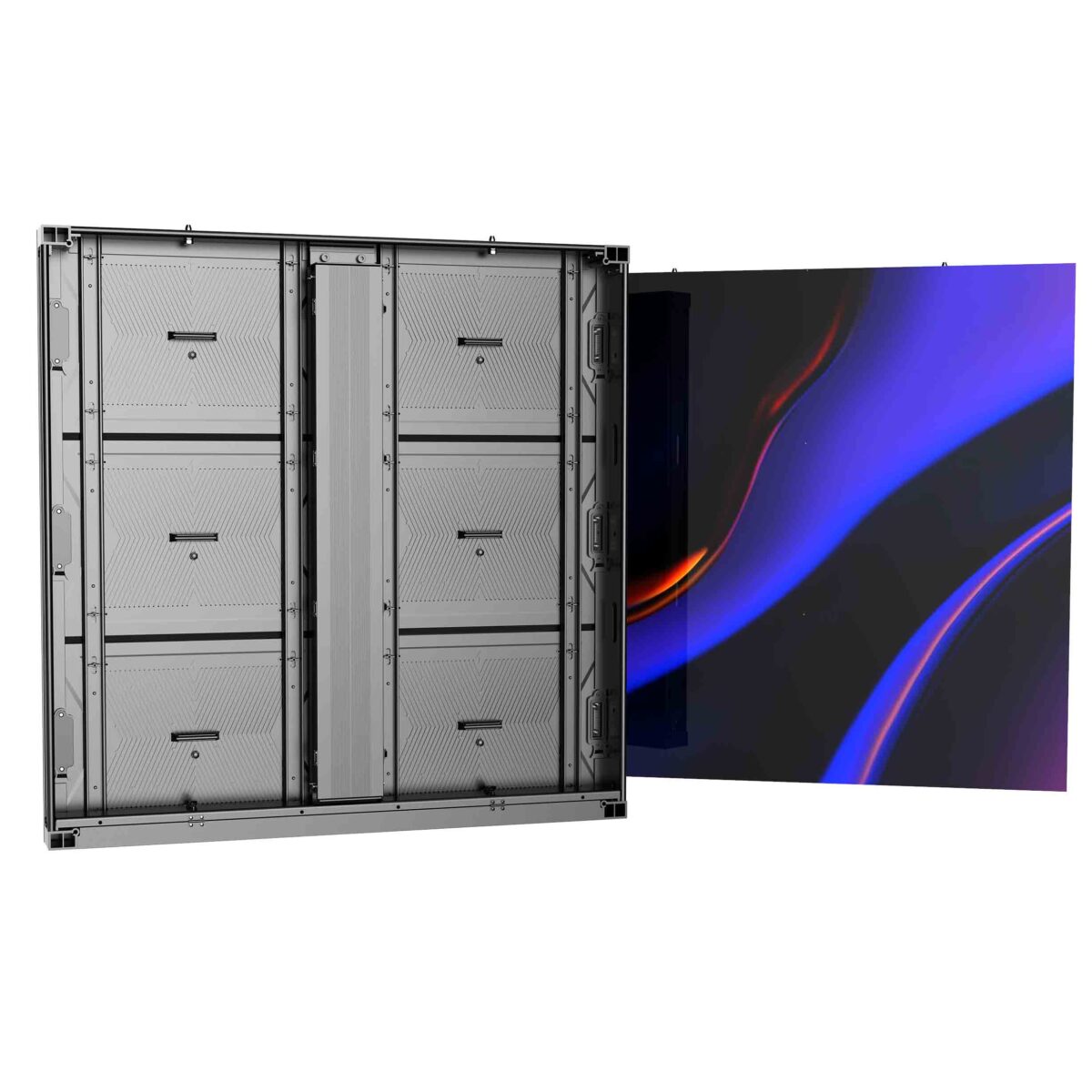

Outdoor 960×960mm Aluminum Profile LED Display Cabinet
Durable Outdoor LED Display Cabinet with 480×320mm LED Modules
The Outdoor 960×960mm Aluminum Profile LED Display Cabinet is designed for large-format outdoor LED display applications such as billboards, commercial advertising, stadiums, transportation hubs, shopping malls, and public information displays.
Made from a lightweight and durable aluminum profile frame, the cabinet provides excellent structural stability, efficient heat dissipation, and reliable outdoor performance. The standard cabinet size is 960×960mm, designed to accommodate 480×320mm LED modules.
Its modular structure makes installation, maintenance, and replacement easier, helping reduce installation time and long-term maintenance costs.
1. 960×960mm Standard Cabinet Size
The 960×960mm LED cabinet provides an efficient modular structure for building large outdoor LED screens.

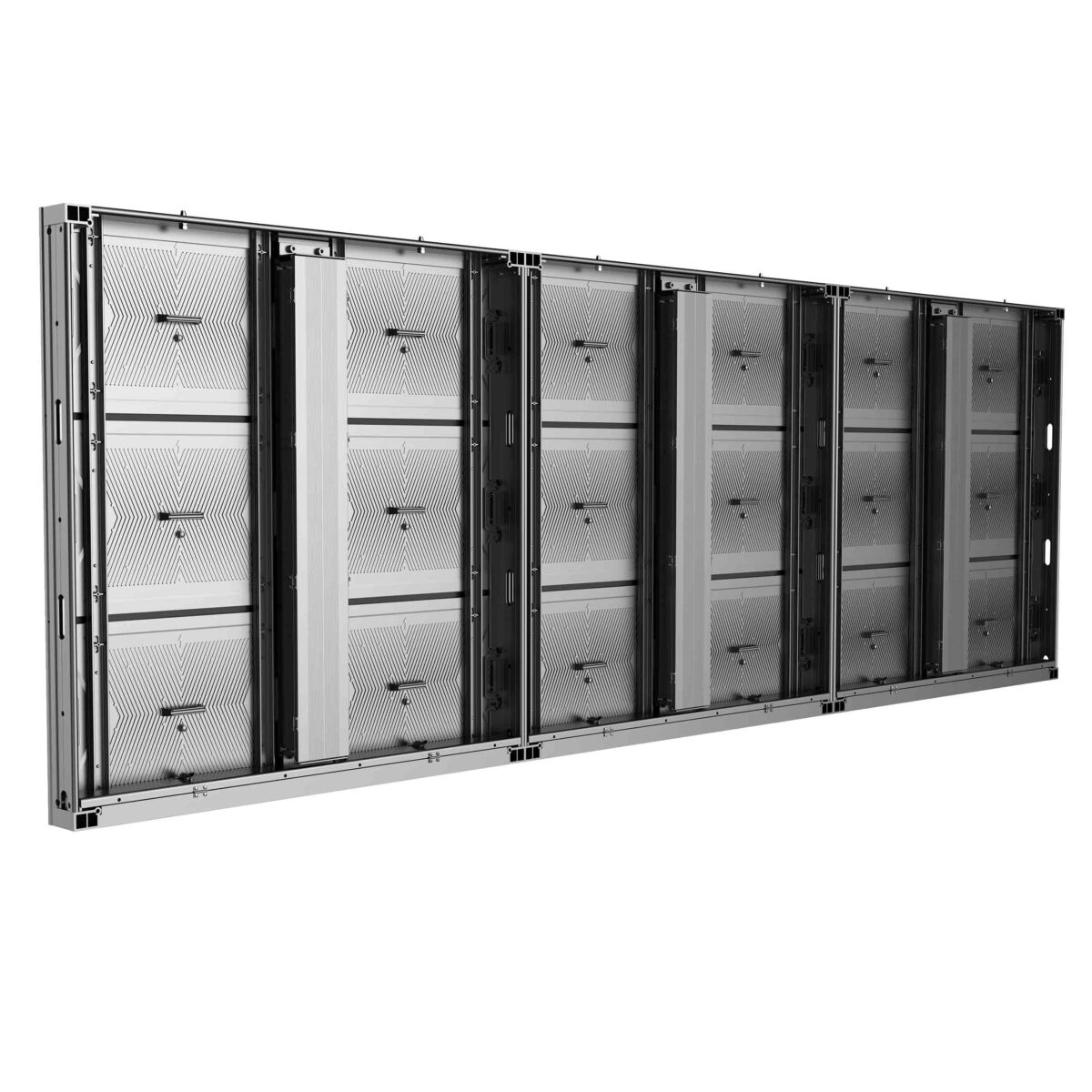

Multiple cabinets can be seamlessly assembled horizontally and vertically to create different screen sizes while maintaining consistent cabinet alignment.
Cabinet Size: 960 × 960mm
2. 480×320mm LED Module
The cabinet is designed for 480×320mm LED modules, providing a practical module configuration for outdoor full-color LED displays.
The modular design allows individual LED modules to be replaced when necessary, making troubleshooting and maintenance more convenient.
Module Size: 480 × 320mm
3. Strong Aluminum Profile Construction
The cabinet uses an aluminum profile structure that combines strength with relatively low weight.
Compared with traditional heavy steel cabinets, the aluminum construction can help reduce the overall weight of the LED display while providing good mechanical stability.
It is suitable for permanent outdoor LED installations where durability and structural reliability are important.
4. Efficient Heat Dissipation
The aluminum cabinet structure helps transfer heat away from internal electronic components.
Good heat management is particularly important for outdoor LED displays, which may operate under high ambient temperatures and direct sunlight.
The cabinet design provides ventilation and heat dissipation space around the LED modules and internal components.
5. Outdoor Waterproof Design
The cabinet can be configured for outdoor environments with appropriate waterproof LED modules, power supplies, connectors and sealing components.
The complete display can be designed to meet the required outdoor protection level according to the project requirements.
It is suitable for applications exposed to rain, dust, sunlight and changing weather conditions.
6. Easy Installation & Maintenance
The cabinet adopts a modular design to simplify installation and maintenance.
LED modules and internal components can be accessed and replaced independently, helping service technicians quickly locate and solve problems.
This is especially useful for large outdoor LED advertising screens where maintenance time directly affects operating costs.
Product Specifications
| Item | Specification |
|---|---|
| Product Type | Outdoor LED Display Cabinet |
| Cabinet Size | 960 × 960mm |
| Cabinet Material | Aluminum Profile |
| LED Module Size | 480 × 320mm |
| Display Type | Outdoor Full Color LED Display |
| Installation | Fixed Installation |
| Application | Outdoor |
| Cabinet Structure | Modular Aluminum Frame |
| Maintenance | Front / Rear Maintenance Options |
| Waterproof Design | Available |
| Heat Dissipation | Aluminum Structure + Ventilation |
| LED Pixel Pitch | P4 / P5 / P6.67 / P8 / P10 etc. |
| Brightness | Customized according to pixel pitch |
| Refresh Rate | Customized |
| Control System | NovaStar / Huidu / Other Options |
| Power Supply | Mean Well / Other Options |
| Customization | Available |
480×320mm Module Configuration
The 480×320mm LED module is one of the key design features of this cabinet.
For a 960×960mm cabinet, the module arrangement can be configured as:
2 × 3 modules = 960 × 960mm
This provides a clean and standardized cabinet structure and makes module replacement easier.
Module Layout:
480mm × 2 = 960mm
320mm × 3 = 960mm
Therefore, one 960×960mm cabinet can accommodate 6 pcs of 480×320mm LED modules.
Applications
The 960×960mm outdoor LED cabinet is suitable for a wide range of commercial and public display applications.
Outdoor Advertising
Ideal for:
- LED billboards
- Digital advertising screens
- Building advertising displays
- Shopping mall advertising
- Commercial signs
- Roadside advertising
Stadium & Sports Venues
Can be used for:
- Stadium perimeter LED displays
- Sports advertising boards
- Scoreboard displays
- Event information screens
- Sponsor advertising
Transportation
Suitable for:
- Bus stations
- Railway stations
- Airports
- Highway advertising
- Transportation information displays
Public & Commercial Information
Suitable for:
- Public information screens
- Commercial plazas
- Retail stores
- Event venues
- Outdoor media displays
Why Choose the 960×960mm Aluminum Profile Cabinet?
Lightweight Aluminum Structure
Reduces cabinet weight while maintaining structural strength.
Standardized 960×960mm Design
Suitable for large-scale LED display projects and modular screen assembly.
480×320mm LED Modules
Simple module configuration makes replacement and maintenance easier.
Outdoor-Ready Construction
Can be configured with waterproof components for demanding outdoor environments.
Flexible Configuration
Available with different pixel pitches, brightness levels, control systems and power supplies.
Easy Maintenance
Modular construction allows defective components to be replaced individually.
