Using high and low-temperature resistant flame-retardant kit, the ink is uniform and safe；

* Reinforced ribbed bottom shell structure, excellent flatness, not easily deformed；

* Wide color gamut, high color reproduction, resulting in a more vibrant and natural image；

* Wide viewing angle, no color distortion from any position；

* Using industry-standard common unit boards and common data, power interfaces；

* Iron case, die-cast aluminum case, and simple case are optional；

* IP65-rated waterproof and dustproof；

Mainly used for outdoor applications, like highway or senic spots information display, building advertising, outdoor stages etc.

		P4	P5	P8	P10
Module Parameters	Pixel Pitch	4mm	5mm	8mm	10mm
	Module Size（L*H）	320*320mm
	Module resolution（L*H）	80*80	64*64	40*40	32*32
	Pixel Density	62500dots/㎡	40000dots/㎡	15625dots/㎡	10000dots/㎡
Cabinet Technology	Cabinet Size（L*H）	Decide based on the needs
	Cabinet Material	Die casting magnesium aluminum
	Cabinet Resolution （L*H）	Base on cabinet
	Brightness	5000-6500cd/㎡
	Viewing angle	Horizontal 145°, Vertical 145°
	Gray Scale	14bit
	Color Temperature	3000-10000K
	Refresh Rate	3840HZ
	Contrast	≥5000:1
	Maximum Power Consumption	900W/㎡
	Average Power Consumption	300W/㎡
	Discrete Failure Point	≤0.1‰
	Control Mode	Synchronou/Asynchronous
	Input Voltage	AC 220V
	Typical Lifespan	100,000H
	Operating Environment Temperature	－20～60℃
	Operating Environment Humidity	10%～90％
	IP Rating	IP65
	Maintenance Method	Both rear maintenance and front maintenance

Competitive Advantages

1. High quality;

2. Competitive price;

3. 24-hours service;

4. Promote delivery;

5.Small order accepted.

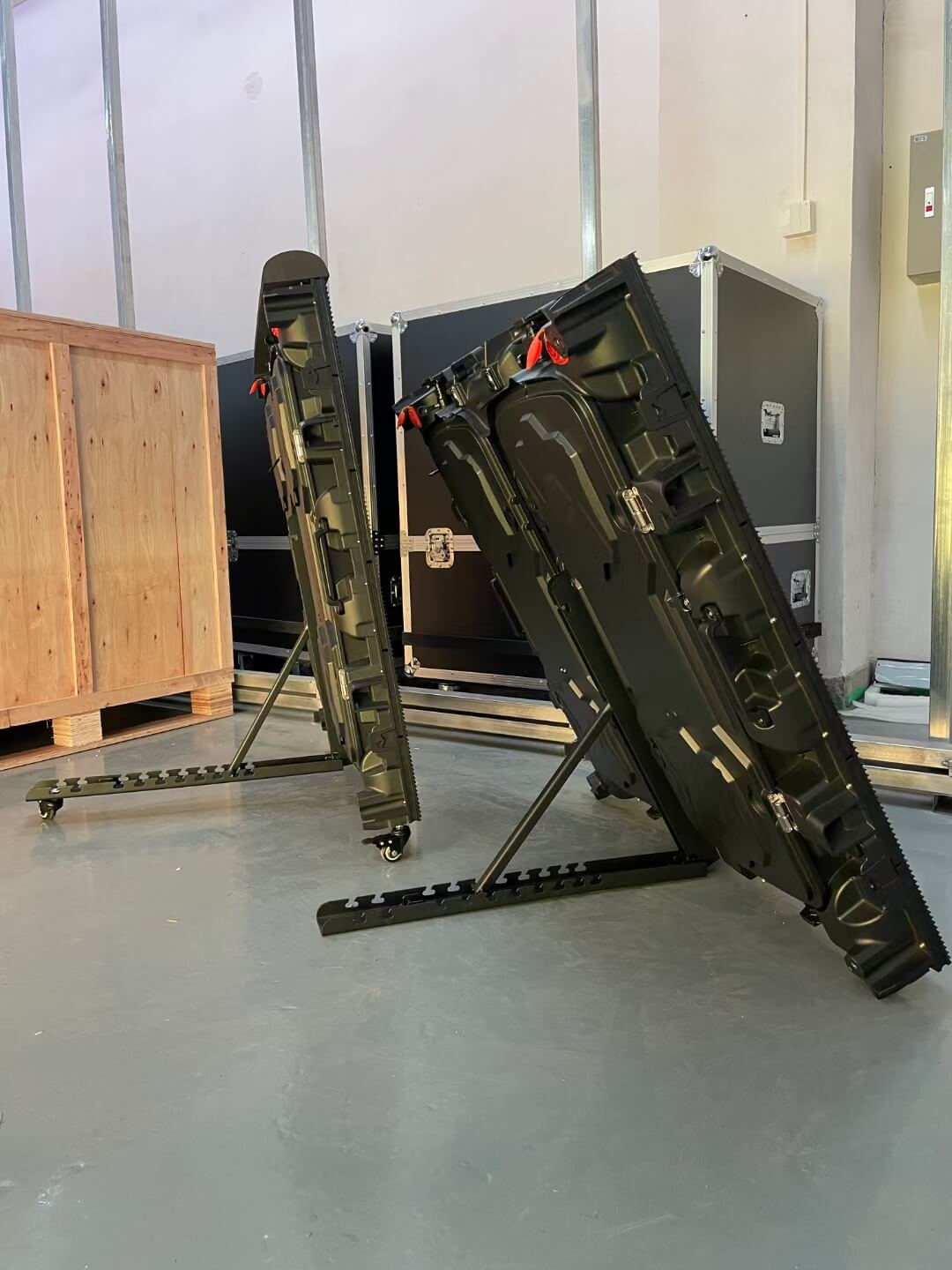

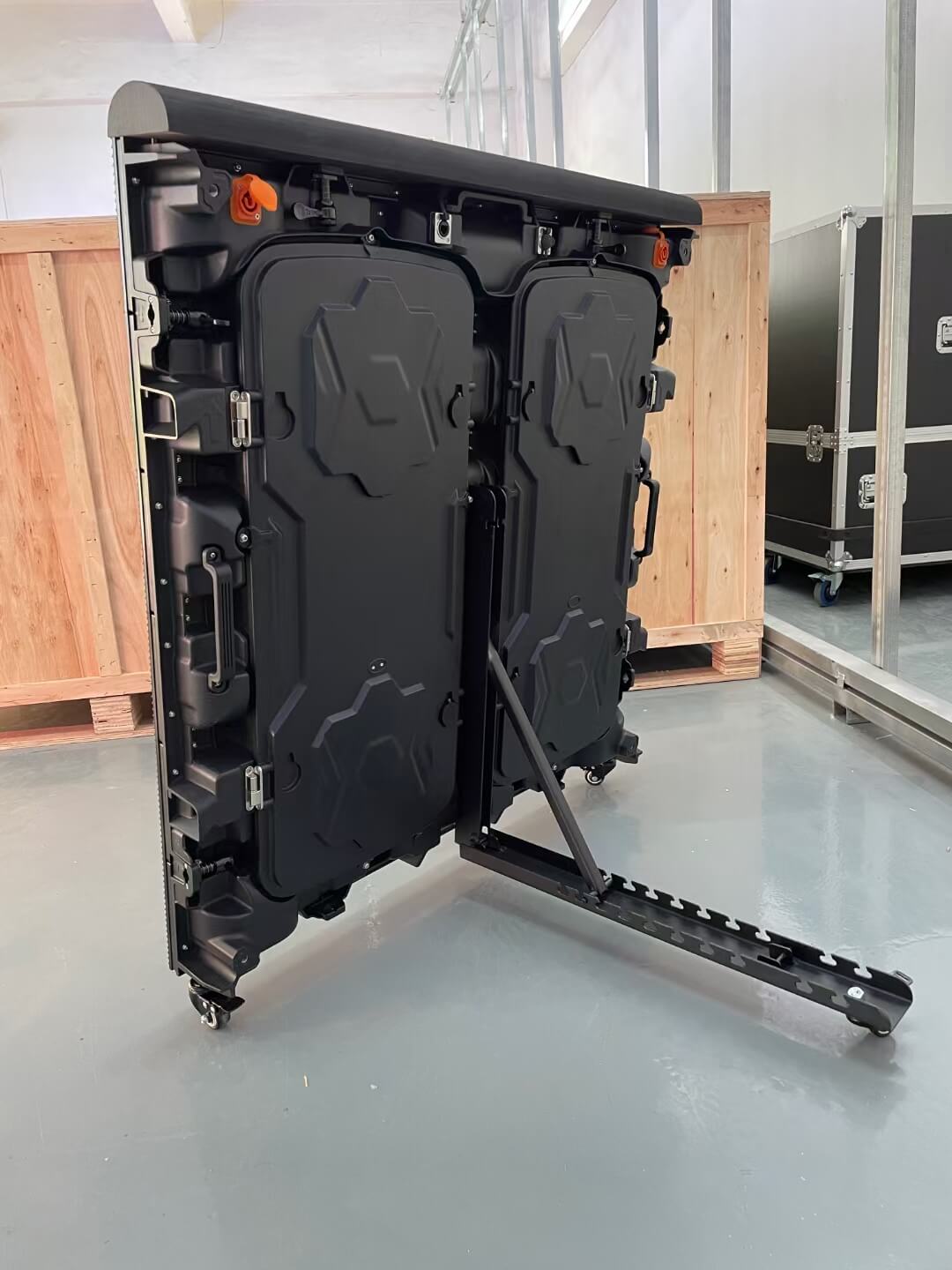

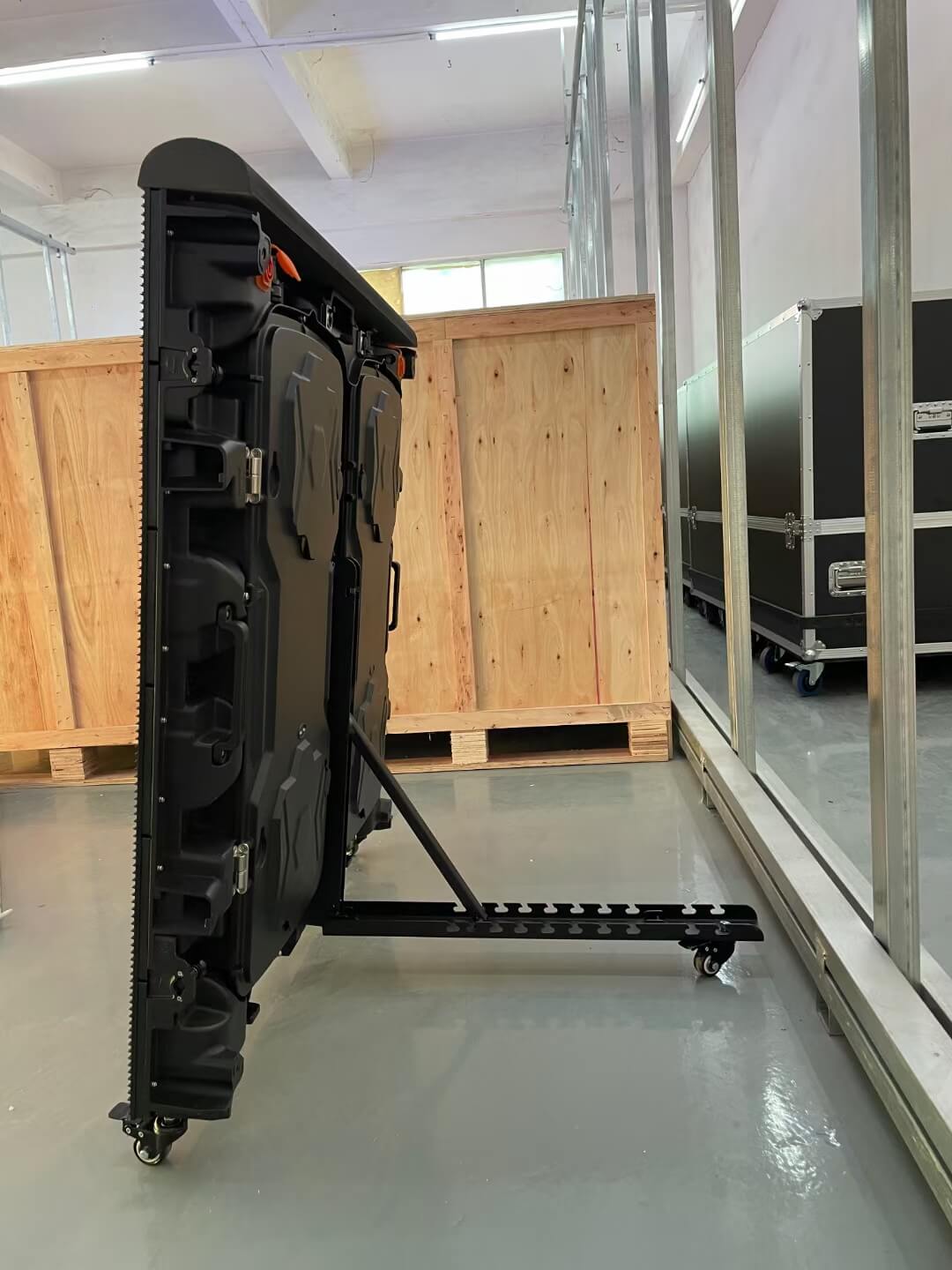

960×960mm Stadium Perimeter LED Display with Wheels | Portable Sports LED Screen
